CK Carbide Cylindrical Shank Ø 20 - 60
ST28W-CKB2-245
SKU
200036437
Due to maximum rigidity, a carbide bar, optimized in length and with the biggest possible diameter, guarantees the best result when machining deep bores.
Article no.: -
Availability: on stock
Only for traders: Login/Register

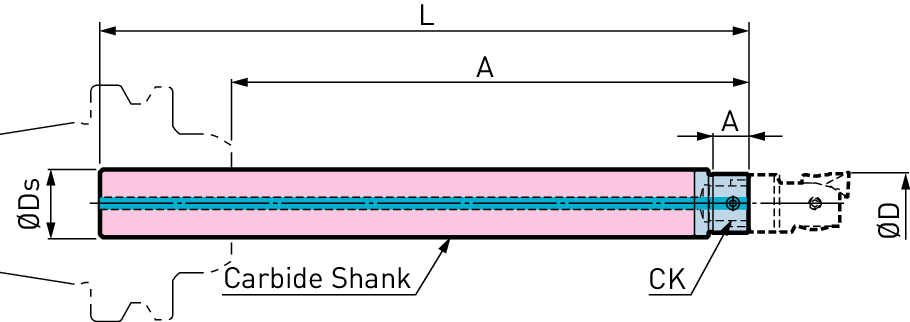

Technical data
Abb.:
2
ØD:
29 - 47 (25 - 28)
ØDs:
28
L:
245
L1:
19
A:
167 (19)
CK:
CK2
Weight (kg):
1.9
- The dimension A in the table is the reference value when used with HDC.
CK Carbide Cylindrical Shank Ø 20 - 60
Due to maximum rigidity, a carbide bar, optimized in length and with the biggest possible diameter, guarantees the best result when machining deep bores.
