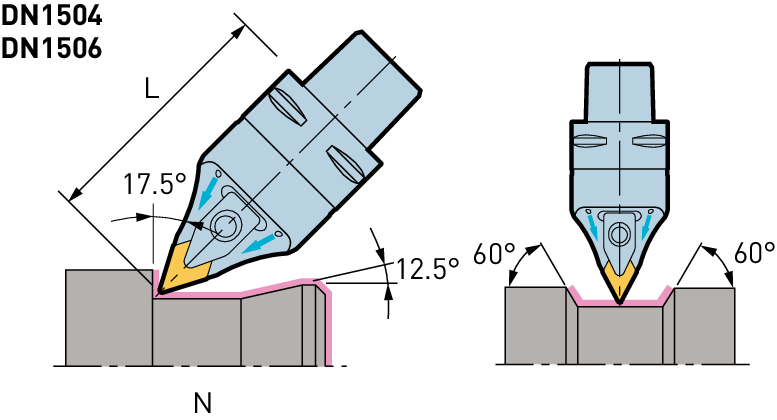

45° Integral Tool Holder Type S
C4-DDHNN-00075-15
SKU
200043897
Article no.: 101356.001.0
Availability: within 2 weeks
Only for traders: Login/Register
Technical data
Abb.:
4
L:
75
Nr.:
3
Weight (kg):
0.53
Hand:
N
Hand:
N
Entering Angle:
107.5°
Clamping Method:
Doppelklemme
Insert Shape:
Rhombisch 55˚
Relief Angle:
0° Negativ
Clamp Piece:
SCP2S
Insert:
DN1504 * (DN1506)
- Inserts are not included.
- * Carbide shim for 4.76 mm thick DN1504 insert is included as standard. In case of DN1506 insert (thickness of 6.35 mm), please replace the standard carbide shim with DNS1506 (option).
- ** VB1604 and VC1604 Inserts are suitable.
- M3.5 is a screw-on type.
