Angle Head Compact Type BBT

BBT40-AG90-13-170

SKU

200019248

Compact and lightweight while fully equipped with the functions and accuracy required in drilling.

Only for traders: Login/Register

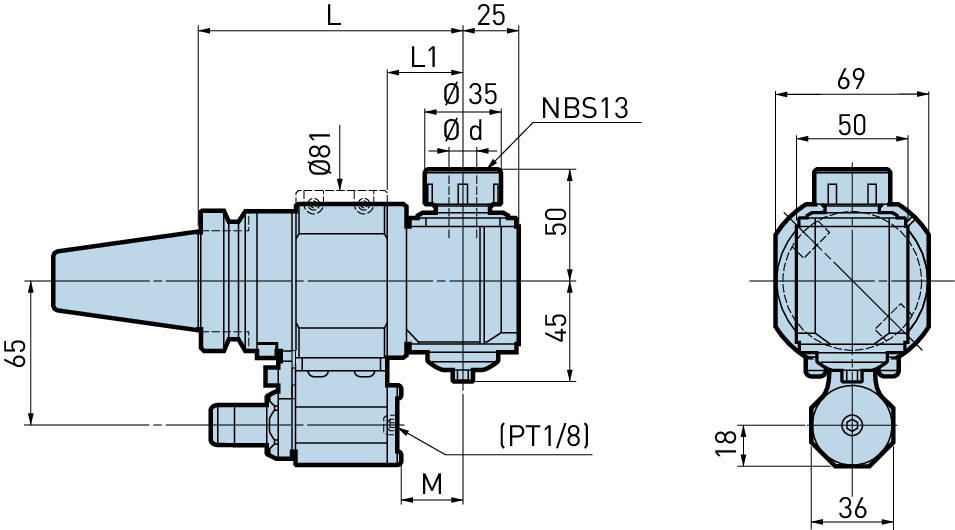

Technical data

Abb.: 1

Ød : 2.5 - 13

ØD: 30

L: 170

L1: 84

ØF: 124

G: 31

K: 28

M: 77.85

P: 60

Q: 60

max. min-1: 5,000

Weight (kg): 5.5

Collet Model: NBC13

Nut is included.
Wrench is included.
Exclusive Stop Block is required.
New Baby Collet for endmilling (NBC - EAA) can not be used.
The cutting tool rotates in reverse to the machine spindel.
Collet is not included.
The angles of the locating pin to the drive key groove and direction of cutting edge are freely adjustable.
When used with stop block peripheral cooling is possible
Automatic tool change may not be available, depending on machine models.
