Angle Head HMC Type with cooling through the spindle
BBT50-TAG90/HMC32S-230
SKU
300013354
Only for traders: Login/Register

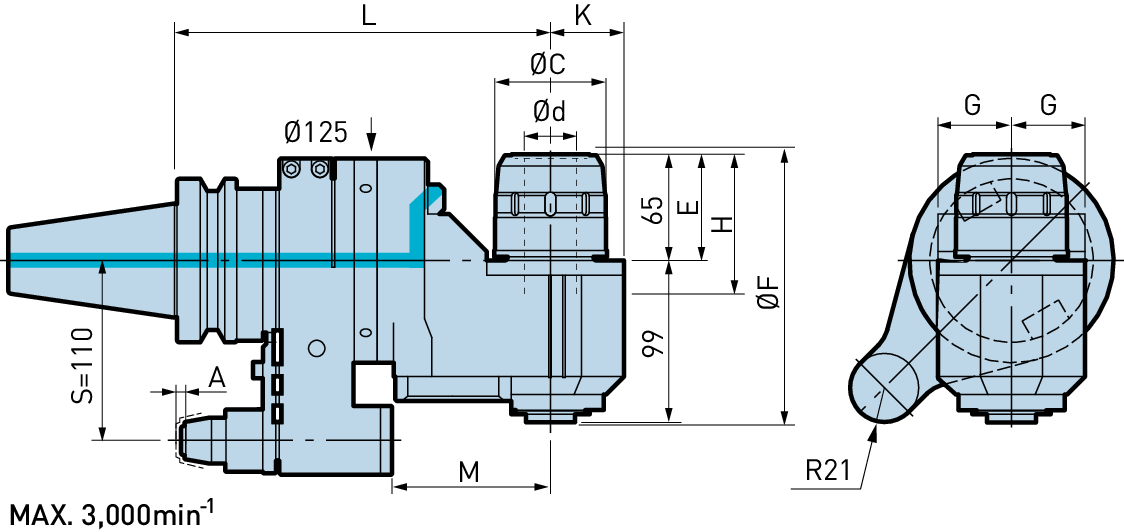

Technical data
Ød:
32
L:
230
A:
6
ØC:
68
E:
65
ØF:
170
G:
45
H:
95
K:
45
M:
97
Weight (kg):
16.8
- BIG-PLUS® tools can be used in machining centers with non BIG-PLUS® spindles.
- Exclusive Stop Block is required.
- Models with a “S” are high rigidity type.
- The standard length A is 6 mm.
- Wrench (FK80-90) is included.
- "ØF" indicates the minimum dimension for access into the bore.
