45° Integral Tool Holder Type S
C8-DDHNN-00150-15
SKU
200042108
Article no.: 800.892
Availability: within 2 weeks
Only for traders: Login/Register
Technical data

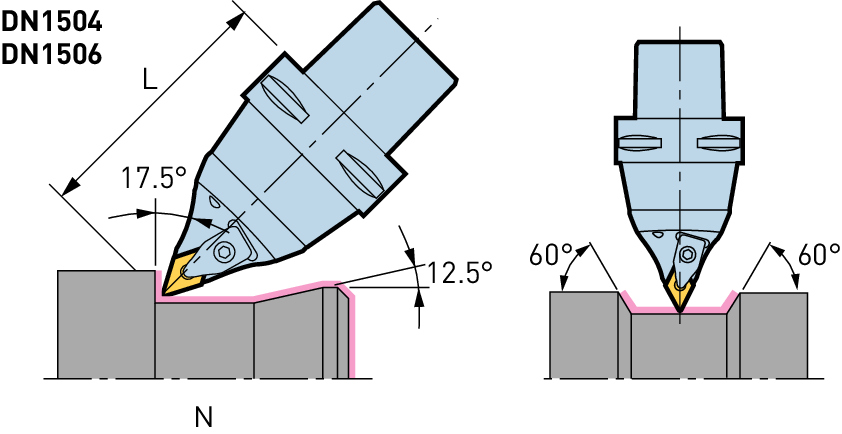

Abb.:
2
L:
150
Nr.:
3
Weight (kg):
3.9
Hand:
N
Hand:
N
Entering Angle:
107.5°
Clamp Piece:
CP2
Insert:
DN1504/DN1506*
- Inserts are not included.
- * Carbide shim for 4.76 mm thick DN1504 insert is included as standard. In case of DN1506 insert (thickness of 6.35 mm), please replace the standard carbide shim with DNS1506 (option).
- ** VB1604 and VC1604 Inserts are suitable.
- M3.5 is a screw-on type.
