Shrink Chuck Standard HSK-F
HSK-F63-SRC8-90
SKU
200049071
Stable body provides high rigidity.
Article no.: -
Availability: within 2 weeks
Only for traders: Login/Register

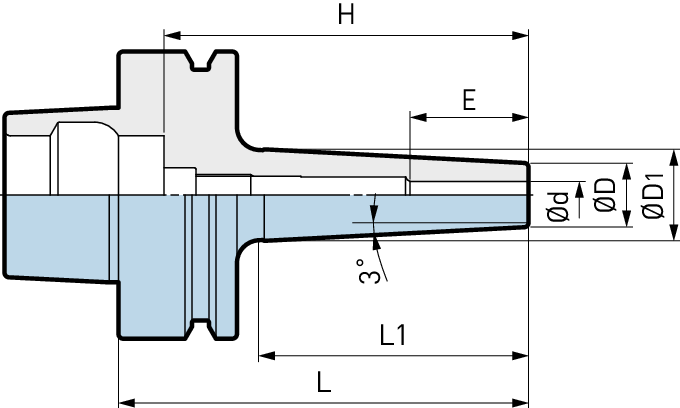

Technical data
Mindestbestellmenge & Verpackungseinheit:
1
Abb.:
1
Ød:
8
ØD:
18
ØD1:
25
L:
90
L1:
59
E:
26
H:
80
Weight (kg):
0.8
- * Use carbide cutter within a tolerance of h5.
- Use carbide cutter within a tolerance of h6.
- “H” dimensions in ( ) are reference length up to the coolant pipe.
- “E” is the min. clamping length.
- Coolant pipe (CL) is to be ordered separately.
- Please refer to the operation manual of heating / cooling equipment, as some equipment may not be compatible.
