Shrink Chuck Standard HSK-F
HSK-F63-SRC12-90
SKU
200049073
Stable body provides high rigidity.
Article no.: -
Availability: within 2 weeks
Only for traders: Login/Register
Technical data
Mindestbestellmenge & Verpackungseinheit:
1
Abb.:
2

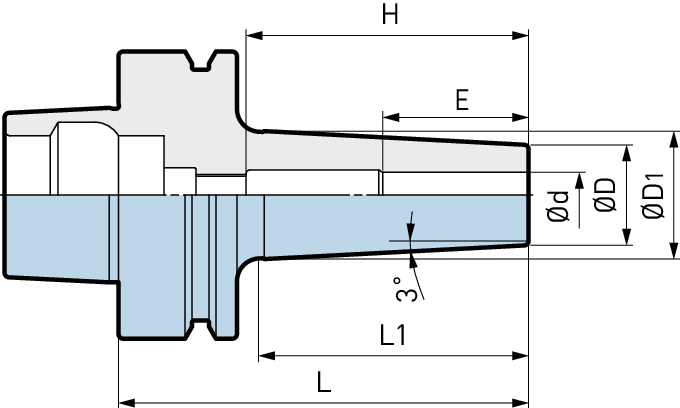

Ød:
12
ØD:
24
ØD1:
31
L:
90
L1:
59
E:
36
H:
63
Weight (kg):
0.9
- * Use carbide cutter within a tolerance of h5.
- Use carbide cutter within a tolerance of h6.
- “H” dimensions in ( ) are reference length up to the coolant pipe.
- “E” is the min. clamping length.
- Coolant pipe (CL) is to be ordered separately.
- Please refer to the operation manual of heating / cooling equipment, as some equipment may not be compatible.
