Alignment Tool for ATC arm
BT40-ATC20
SKU
300005244
For maintenance of machine tool spindles. Equipment to measure misalignment between the ATC arm and machine tool spindle or magazine pot center.
Article no.: 978.237
Availability: within 2 weeks
Only for traders: Login/Register

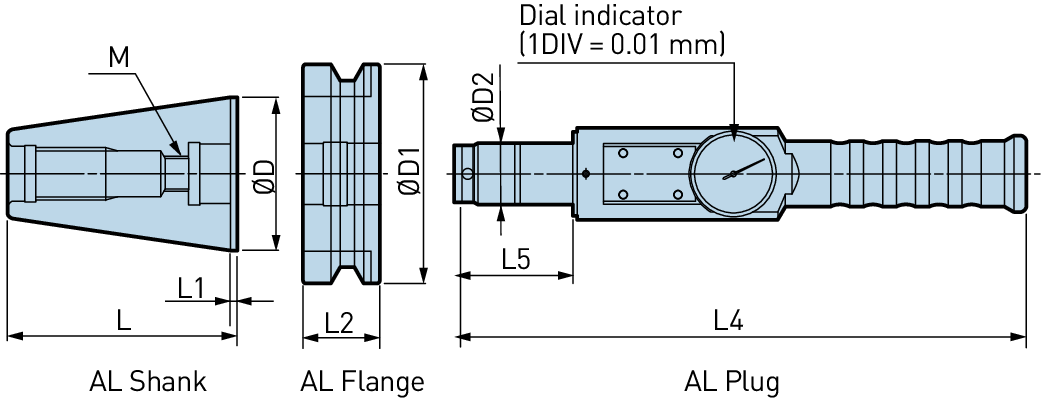

Technical data
Abb.:
1
ØD:
44.45
ØD1:
63
ØD2:
20
L:
67.4
L1:
2
L2:
25
L3:
-
L4:
251
L5:
44
M:
12
Weight (kg):
1.6
Min. Scale:
1 DIV = 0.01 mm
- For HSK is also available upon request. Please contact BIG DAISHOWA agent.
Alignment Tool for ATC arm
For maintenance of machine tool spindles. Equipment to measure misalignment between the ATC arm and machine tool spindle or magazine pot center.
