Point Master Pro Series - BBT Type
BBT40-PMP-120
SKU
200021395
JIS B 6339 (BIG-PLUS®)
Only for traders: Login/Register

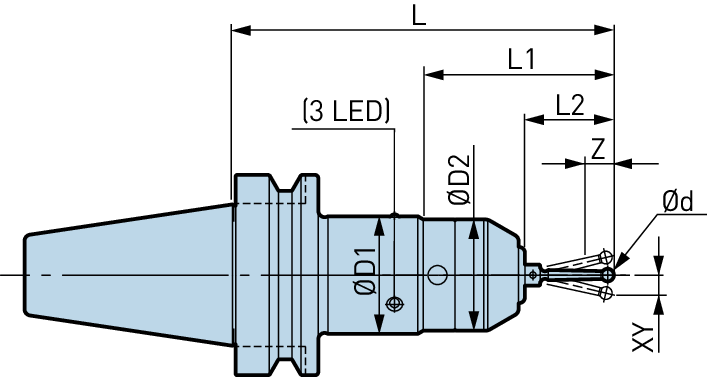

Technical data
Abb.:
2
Ød:
4
ØD1:
37
ØD2:
35
L:
120
L1:
60
L2:
28
Endbetätigung XY:
± 12
Weight (kg):
1.3
Stylus (included):
ST28-4R
Battery:
LR1 x 2P
- Above table indicates the specification when using stylus ST28-4R.
- There is approx 5 μm lag in X and Y directions and approx. 2 μm lag in Z direction to illuminate LED lamp when stylus touches workpiece surface.
- Battery is not included.
