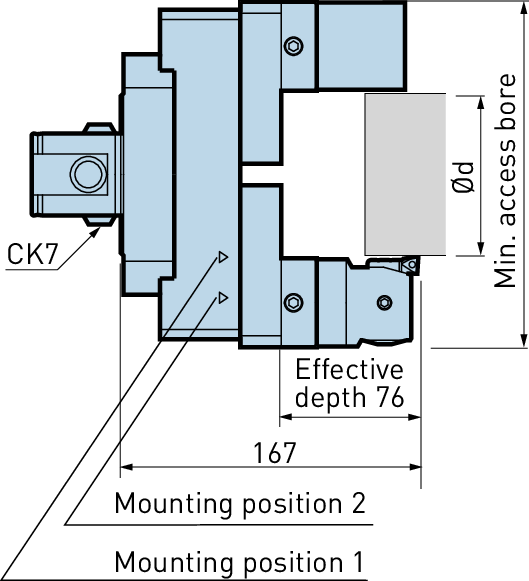

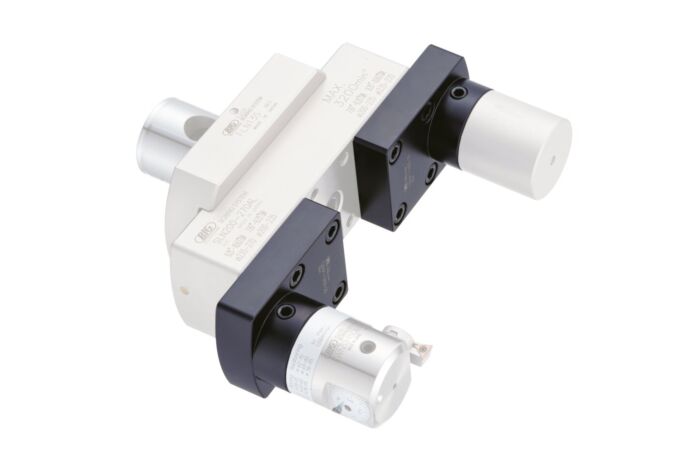

OD Turning with EWN/EWE/SW, Ø 16 - 120
CBN91-CKB5-20
SKU
300009937
Our standard fine and rough boring tools (EWN, EWE and SW) can be used for outer diameter turning with the OD turning bridge. Wide range is covered by 5 bridges.
Article no.: -
Availability: on stock
Only for traders: Login/Register
Technical data
V5 Seite:
445
Head:
EWN53-95CKB5
Weight (kg):
1.2
- The numbers in brackets indicate the tool length (L) and the max. pin length (X) with the use of the corresponding extensions.
- Attention: Counter-clockwise rotation of spindle! Vc max. 450m/min
OD Turning with EWN/EWE/SW, Ø 16 - 120
Our standard fine and rough boring tools (EWN, EWE and SW) can be used for outer diameter turning with the OD turning bridge. Wide range is covered by 5 bridges.
