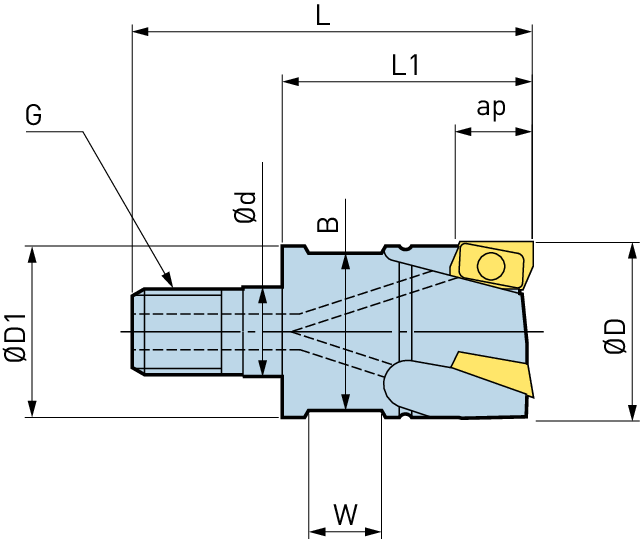

Technical data
Ød:
17
ØD:
32
ØD1:
29
L:
63
L1:
40
B:
26
G:
M16
W:
12.2
Weight (kg):
0.2
ap:
10
Anz. Wendeplatten:
2
Insert:
BRG3210
- A screwdriver for insert clamping is included, but inserts are not.
- A wrench for tightening the head is not included. Please use a comercially avaliable one.
- For main body shanks with L=100mm or more, we recommend using two flutes when performing medium to heavy cutting in full material.
