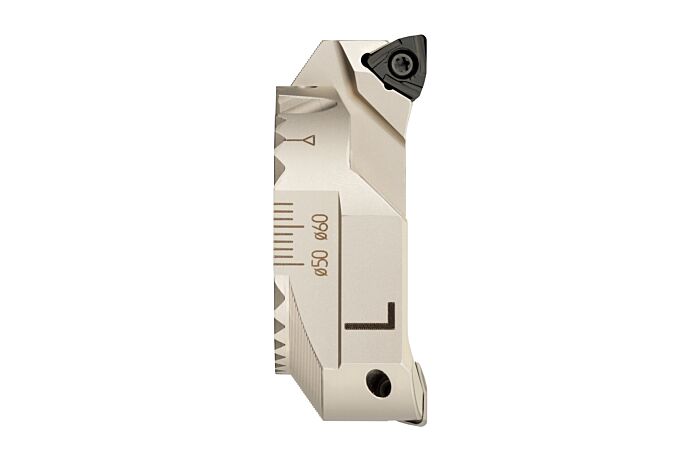

SW Cartridge Type ZN
SW6890N
SKU
200043913
Full profile roughing permits boring with balance cut for large stroke with allowances (30 mm and more in Ø) in a single operation with relatively low drive power.
Only for traders: Login/Register
Technical data
ØD :
68 - 90
L1:
57
L2:
57.2
CK:
CK5
X:
0.4
Head:
SW53-86CKB5
Weight (kg):
1
Insert:
ZN08
Screw Set:
S412S-15IP

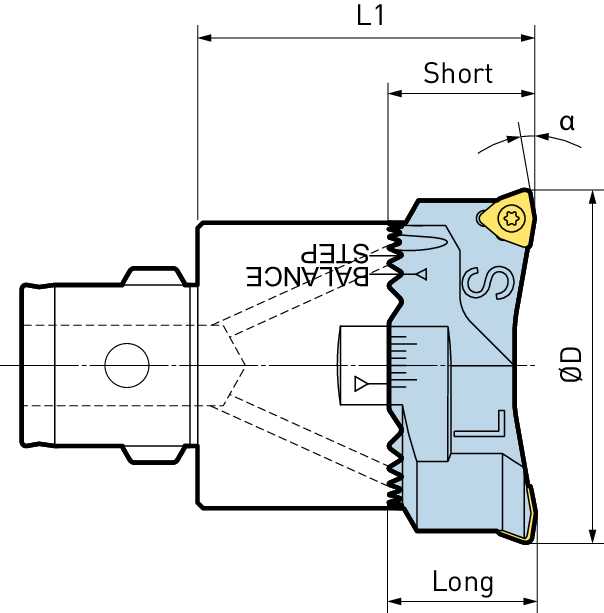

- Consisting of two insert holders with different lengths, type S (short) and L (long).
- The insert holders are also available as spare parts.
- * L1 depends on the length of the boring head.
SW Cartridge Type ZN
Full profile roughing permits boring with balance cut for large stroke with allowances (30 mm and more in Ø) in a single operation with relatively low drive power.
