Angle Head New Baby Chuck Type BBT

BBT50-AG45/NBS13-265

SKU

200008047

Highly versatile NEW BABY CHUCK type 45 degree housing enables high accuracy diagonal machining.

Only for traders: Login/Register

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

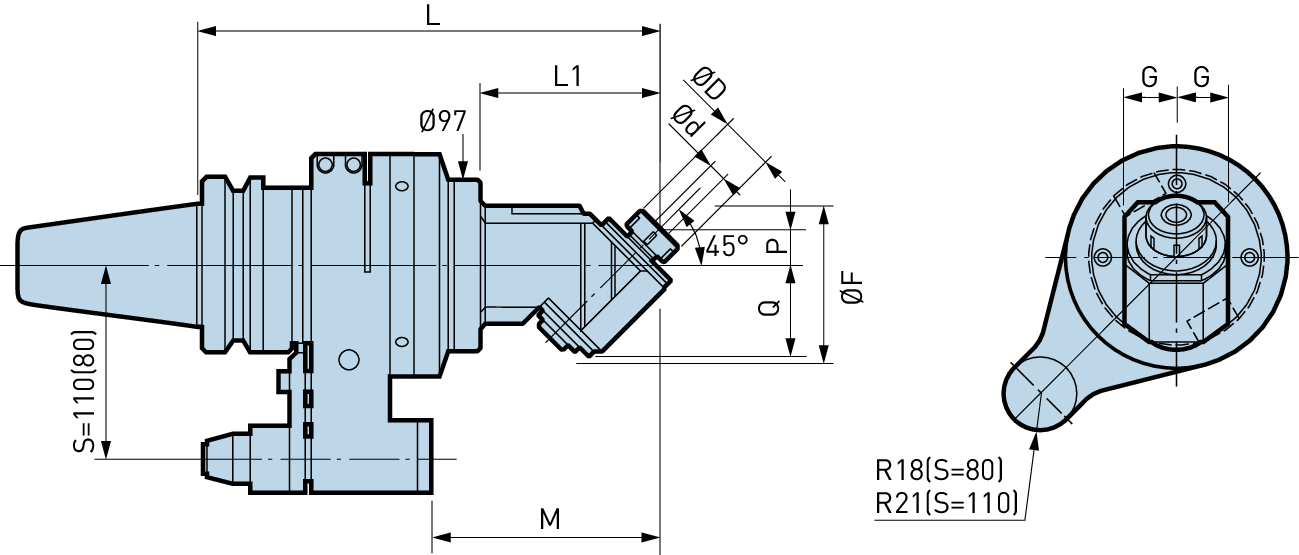

Technical data

Abb.: 2

Ød : 2.5 - 13

ØD: 35

L: 265

L1: 105

ØF: 90

G: 30

M: 132

P: 25

Q: 51.5

Weight (kg): 13.3

Collet Model: NBC13

Nut and wrench are included.
New Baby Collet is to be ordered separately.
New Baby Collet for endmilling (NBC - EAA) can not be used.
Coolant can be supplied through the locating pin.
Exclusive Stop Block is required.
"ØF" indicates the minimum dimension for access into the bore.
"CP" indicates compression.
BBT50 is with S = 110. S = 80 type is available upon request.
