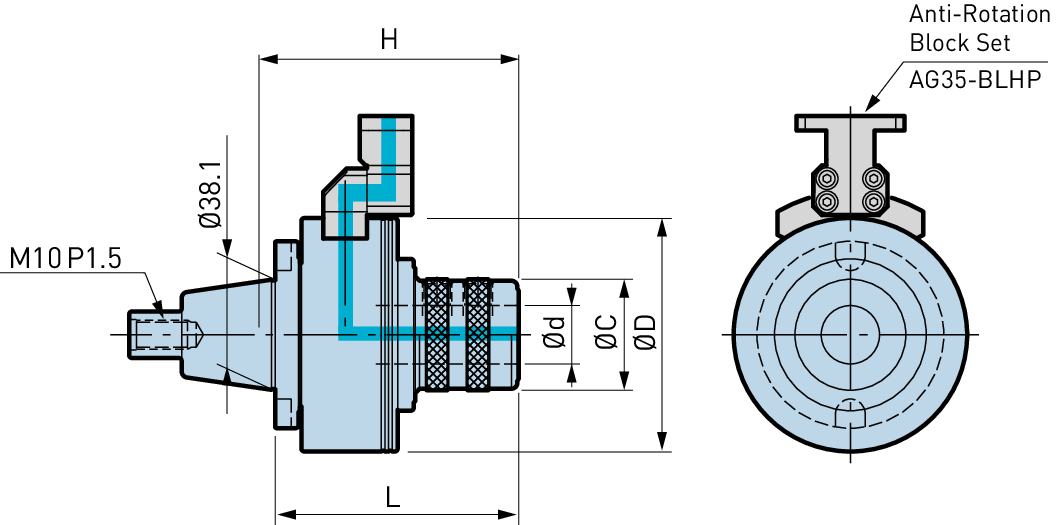

Technical data
Ød:
20
ØD:
80
L:
83.5
ØC:
38
ØF:
198
H:
89
Head:
AG35
Weight (kg):
1.6
- Anti-rotation block set is to be ordered separately. (Model: AG35-BLHP)
- Max. coolant flow rate: 30 l/min, max. coolant pressure: 70 Bar.
- ”H“indicates the maximum cutting tool insertion length.
- Applicable only for water-solved coolant.
