Angle Head Build up Type with center through coolant
BBT50-TAG90/AGH35-230S
SKU
300013383
Only for traders: Login/Register

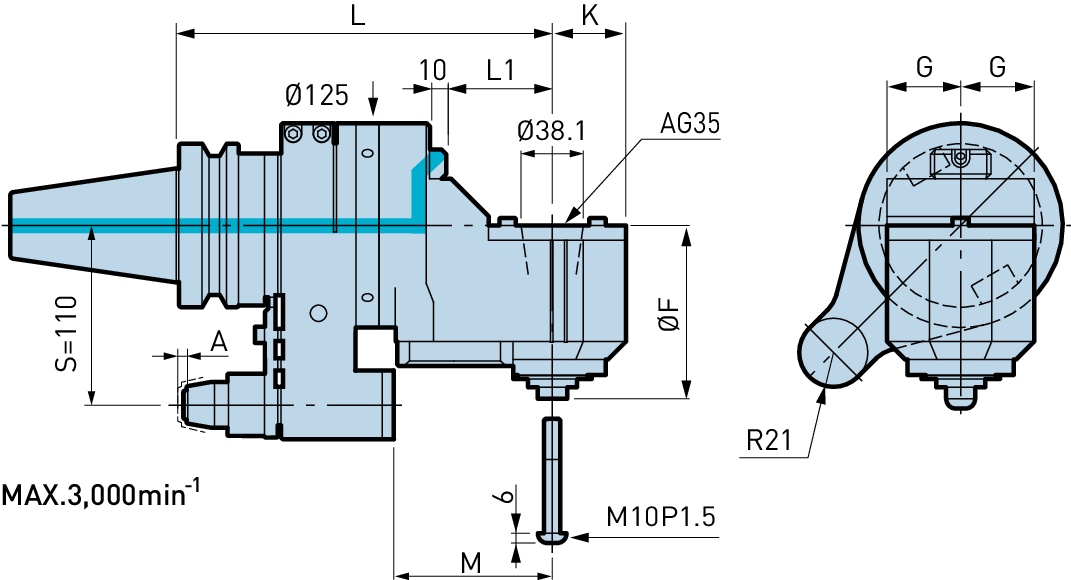

Technical data
Ød:
-
L:
230
L1:
65
A:
6
ØF:
106
G:
45
K:
45
M:
97
Head:
AG35
Weight (kg):
16.9
- BIG-PLUS® tools can be used in machining centers with non BIG-PLUS® spindles.
- Exclusive Stop Block is required.
- Models with a “S” are high rigidity type.
- The standard length A is 6 mm.
- Coolant can be supplied through the locating pin.
